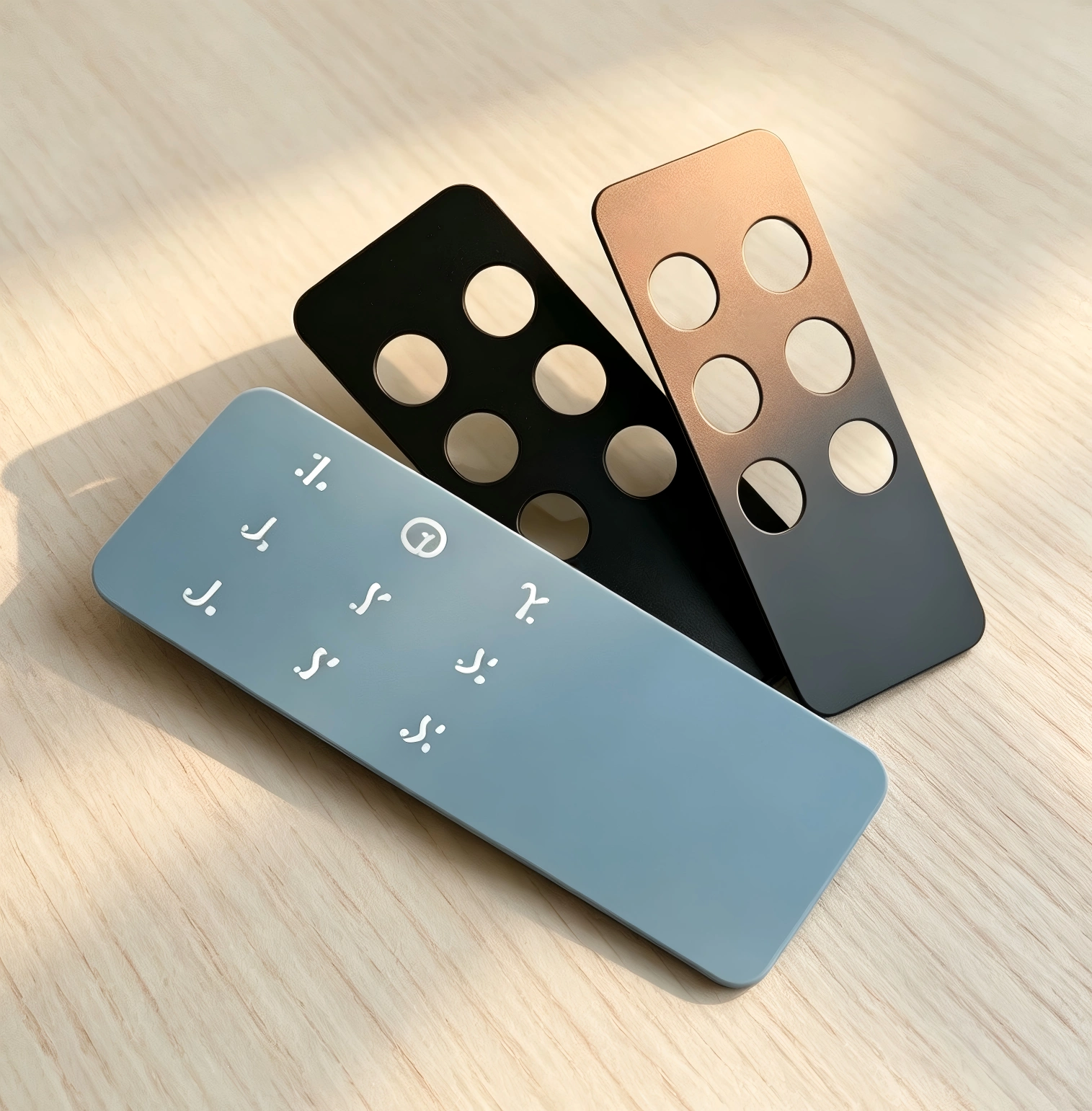

Tempered Display Cover Glass

Tempered Display Cover Glass for Custom OEM Applications

We manufacture custom tempered display cover glass for touchscreens, industrial control panels, consumer electronics and other electronic display devices. Our OEM solutions support custom glass dimensions, thicknesses, shapes, edge finishing, silk screen printing and surface coatings according to customer drawings and technical specifications.

Available options include soda-lime glass and aluminosilicate glass, with chemical strengthening or thermal tempering selected according to the glass material, thickness and application requirements. Additional options include anti-reflective (AR), anti-glare (AG) and anti-fingerprint (AF) coatings, CNC machining, precision cutouts and adhesive bonding.

Whether you need prototype samples or repeat production batches, we can review your drawings and recommend a suitable glass fabrication process based on your optical, mechanical and cost requirements.

Meanwhile, Weiman has strong engineering team who can convert your ideas into reality, you can only offer us drawing & ideas or even only real samples, our team will:

First, tempered display cover glass materials selection including:

1.Glass substrate: Normally tempered display cover glass has 2 options including soda lime glass and aluminosilicate glass. But each kind of glass has different costs and options(Like Panda, Dragon Tail, Gorilla). We cherish your budget and wish to recommend most suiable substrate solutions.

2.Inks: We offer 2 kinds of inks including low temperature ink(Common or UV) and ceramic ink base on your application, indoor or outdoor purpose.

Second, base on your tempered display cover glass drawing :

We will split your design into cutting drawing(Automatic production), CNC drawing and silkscreen print files. Which makes the final glass from substrate into real piece.

Third, each kind of tempered display cover glass coatings(AR-anti reflection, AG-anti glare, AF-anti fingerprint):

To AR, there are 5 kinds of color tones depend on actual purpose including:

Light blue/Blue puple: For consumer electronics with double sides coating transmittance: 96~98%.

Green/Yellow green: For optical or high end display with double sides coating transmittance: 97~99%.

Golden yellow: For solar panel with double sides coating transmittance: 93-96%.

Purple red: For special optical filter or in car cover lens with double sides coating transmittance: 95-97%.

Color free: For high end display with double sides coating transmittance: 98-99.5%.

Different kind of color tone has different costs.

To AG, there are different parameters to be analyzed including:

1.Visible light transmittance(VLT).

2.Roughness(Ra).

3.Haze.

To AF, we offer 2 kinds of coatings:

Plating, it’s durable but cost will be higher.

Spray, cheaper but less durable(several thousand times rub).

Which depends on frequency of usage.

Our sales mean will ask actual application, frequency and offer the best profitable solutions.

Forth, silkscreen print:

For most of the tempered display cover glass, the thickness is less than 3mm. And ceramic ink is only suitable when thickness is 3mm above.

So we usually use low temperature ink but if you will need for outdoor purpose, usually we recommend UV resistance ink(Like Seiko).

But if thickness more than 3mm and less requirement on flatness for outdoor application, we can recommend ceramic ink(The layer can’t peel off even by knife).

Fifth, CNC processing:

It refers to tolerance(precise as +/-0.05) and different edges options(2D,2.5D, polish etc).

Sixth, bonding:

We usually offer 2 kinds of tape bonding including various of 3M tape(Or VHB) depends on different application purpose and thickness.

To OCA tape, it mainly used for fully transparent and whole glass bonding.

How Weiman Inspect The Tempered Display Cover Glass?

To guarantee every unit of cover glass can fully comply with your design, we will arrange fully inspection to each unit including:

Dimensions: First unit of glass full dimension check, every unit fit in dimension fixtures and finish product checking.

Printing: Paint adhesion test, color difference check and every unit under visual check.

Coating: AR(transmittance in different wavelength), AG(VLT, haze, roughness) and AF(Water angle).

Tempering: Thermally tempered(Particle test and IK test), chemically strengthened(CS, DOL and pencil hardness test).

So you will see every step of tempered display cover glass produced by Weiman to ensure they produced correctly and quality safety.

Frequently Asked Questions

1. What is tempered display cover glass used for?

Tempered display cover glass protects electronic display surfaces from everyday contact, scratches and impact-related damage. It is used in industrial control panels, touchscreens, consumer electronics and other display equipment.

2. What is the difference between chemical strengthening and thermal tempering?

Chemical strengthening uses ion exchange to create surface compression and is commonly used for thinner cover glass. Thermal tempering uses controlled heating and rapid cooling to strengthen suitable glass. The appropriate method depends on the glass composition, thickness and application requirements.

3. Can you manufacture custom tempered display cover glass from drawings?

Yes. We can review CAD drawings, dimensions or physical samples to evaluate custom cutting, CNC machining, edge finishing, holes, printing and coating requirements.

4. Can tempered display cover glass have AR, AG and AF coatings?

Yes. AR, AG and AF treatments can be specified according to optical requirements and the selected glass substrate. Available coating combinations and performance targets should be confirmed during technical review.

5. What information is required for a tempered display cover glass quotation?

Please provide the glass dimensions, thickness, material, drawing, strengthening requirements, surface treatments, order quantity and intended application. These details help us assess manufacturing feasibility, sampling requirements and production lead time.

Request a Quote for Tempered Display Cover Glass

Planning a new touchscreen, industrial display or electronic control panel? Share your glass drawing and performance requirements with our engineering team.

To help us evaluate your project, please provide:

• Glass dimensions, thickness and material preference
• Required strengthening method and application environment
• Edge processing, holes, cutouts and printing requirements
• AR, AG or AF coating specifications, if needed
• Prototype quantity and estimated production volume

Our team will review the technical details and recommend a suitable fabrication process for your project. We can support custom samples and production orders based on your specifications.

Send Your Drawing for an OEM Quote
