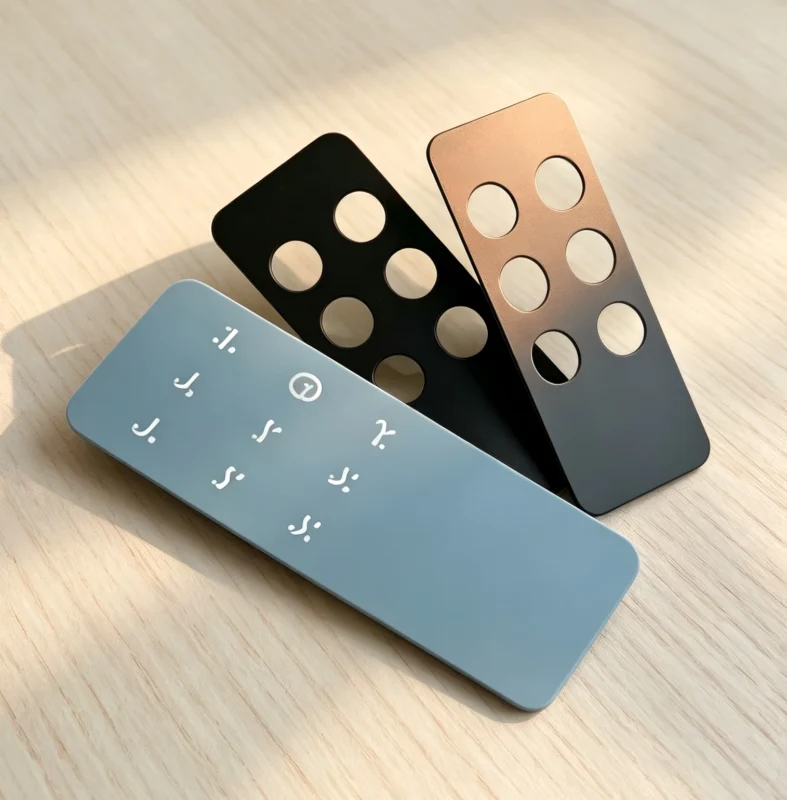

Tempered Cover Glass: The Screen Protector

Product Overview(Tempered cover glass):

First of all, discover our premium tempered cover glass solutions, meticulously designed for attendance machines, smart door locks, and similar devices.

Our products combine cutting-edge technology with elegant design to deliver exceptional performance and durability.

Tempered Cover Glass Key Features:

Advanced Protection: Anti-glare, anti-reflective, also anti-fingerprint coatings ensure optimal clarity and usability.

Durable Construction: Made from tempered glass with a silkscreen printing process, also offering superior scratch resistance and waterproof properties too.

Sleek Design: Features an elegant frame design backed by rigorous quality assurance.

Flawless Finish: Guarantees perfect flatness and smoothness for a seamless user experience.

Customizable Options: Tailor the shape, size, finish, and design to meet your specific requirements.

Additional Coatings: Optional anti-microbial coating available for enhanced functionality.

Service Excellence:

Timely Delivery: Commitment to on-time delivery for your convenience.

Expert Support: One-on-one consultation and professional guidance to assist with your needs.

Elevate your devices with our high-performance tempered cover glass, which designed to meet the highest standards of quality and customization.

Tempered Cover Glass Processing

Precision Cutting
Glass is cut according to customer-specified dimensions and product drawings.

CNC Machining
CNC processing can create holes, slots, notches and other customized geometries.

Edge Processing
Polishing, chamfering and other edge-finishing options are available according to application requirements.

Thermal Tempering
Thermal tempering is used to improve the mechanical strength and durability of the glass.

Screen Printing
Black borders, logos, icons and other custom graphics can be printed on the glass surface.

AR / AG / AF Coatings
Surface coatings can be added when the application requires reduced reflection, glare control or fingerprint resistance.

Tempered Cover Glass vs. Chemically Strengthened Cover Glass

Tempered Cover Glass Specification

Definition Of Safety Glass

Safety glass, specifically tempered or toughened glass, is a specialized type of glass that undergoes controlled thermal or chemical treatments, which enhance its strength significantly compared to standard glass.

Through the tempering process, and then outer surfaces of the glass are compressed, while the inner layer is placed under tension.

This unique structural composition not only makes the glass much stronger, but also ensures it breaks into small, granular pieces rather than sharp shards, and reducing the risk of injury.

To tempering, there usually 2 ways including chemical strengthening for the glass thickness below 3.0mm and thermal tempering for the glass thickness above 3.0mm.

Example for thermal tempering when break

Tempered Cover Glass Customization Processes

Weiman Tech role as glass OEM, which source raw materials for shape and drill hole by CNC machine.

Cutting: Rough shapes by diamond unit or laser cutting from big sheet of glass substrate into rough shapes of the final products, but edge is still sharp and big tolerances.

CNC processings:Edge grinding and chamfering, slotting, hole drilling.

Tempering: Chemically strengthening for thickness under 3.0mm and thermally tempering for 3.0mm thickness above.

Silk screen print: For thin thickness cover glass option, we use resin ink for print and for thermal tempering we use 3.0mm thickness above.

Coatings(AR, AF, AG):

AR means anti reflection by electroplating base on different spectral bands, single side increase 3-4% light transittance and double sides up to 99% at most.

AF with 2 kinds of methods including electroplating(costly but more durable) and spray(cheaper but less durable), it can also protect the AR coating from easy peel off.

AG means anti glare to scatter the ambient light or sun light to screen and reflect to the eye.

Bonding: Mainly focus on 3M tapes including adhesive transfer tape, VHB tape and OCA tapes.

Lamination: Foil to protect from dirt and explosion proof sheet for better anti scatter.

For more details, please feel free to contact us.

FAQ:

What is Tempered Cover Glass?

Tempered Cover Glass is protective glass that has been thermally treated to improve its mechanical strength and durability for display and electronic applications.

What is the difference between tempered glass and chemically strengthened glass?

Tempered glass is strengthened through thermal treatment, while chemically strengthened glass uses an ion-exchange process. The appropriate option depends on thickness, geometry and application requirements.

Can Tempered Cover Glass be customized?

Yes. We can customize thickness, dimensions, shape, holes, cutouts, edge processing, printing and selected surface coatings according to customer drawings.

Can tempered cover glass be used for touchscreens?

Yes. Tempered cover glass can be used for touchscreens and electronic displays when the required thickness, strength, optical and dimensional specifications are suitable for the application.

Can you provide printed tempered cover glass?

Yes. Custom silk-screen printing, including black borders, logos and graphics, can be provided according to project requirements.

What information is needed for a quotation?

Please provide the glass dimensions, thickness, drawing, quantity, edge-processing requirements, printing requirements and intended application.
