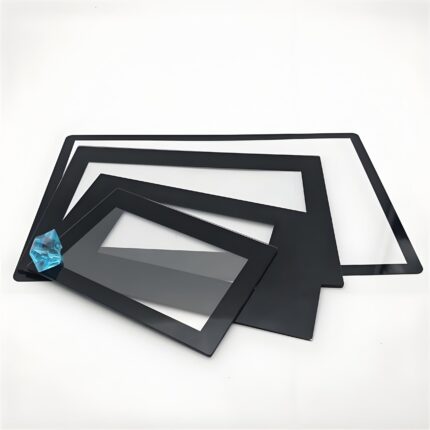

AR Cover Lens

Product Overview

In the first place, our premium AR cover lens (Anti-Reflective) combines advanced technology with superior craftsmanship to meet the highest standards of quality and functionality.

Designed for a wide range of applications, also this product offers exceptional durability, clarity, and customization options.

In Weiman, we offer not just limit on AR coating but also

Cutting: Rough shapes by diamond unit or laser cutting from big sheet of glass substrate into rough shapes of the final products, but edge is still sharp and big tolerances.

CNC processings:Edge grinding and chamfering, slotting, hole drilling.

Tempering: Chemically strengthening for thickness under 3.0mm and thermally tempering for 3.0mm thickness above.

Silk screen print: For thin thickness cover glass option, we use resin ink for print and for thermal tempering we use 3.0mm thickness above.

Coatings(AR, AF, AG):

AR means anti reflection by electroplating base on different spectral bands, single side increase 3-4% light transittance and double sides up to 99% at most.

AF with 2 kinds of methods including electroplating(costly but more durable) and spray(cheaper but less durable), it can also protect the AR coating from easy peel off.

AG mean anti glare, it can scatter the ambient light or sun light into different direction from screen to avoid danger especially in driving.

Bonding: Mainly focus on 3M tapes including adhesive transfer tape, VHB tape and OCA tapes.

Lamination: Foil to protect from dirt and explosion proof sheet for better anti scatter.

Key Features:

Tempered AR Cover Lens: Enhance with a silkscreen printing process for added durability and aesthetic appeal too.

Exceptional Durability: Super scratch-resistant and waterproof, ensuring long-lasting performance.

Elegant Design: Features a sophisticate frame design back by rigorous quality assurance.

Flawless Finish: Delivers perfect flatness and smoothness for a seamless user experience.

Customizable Options: Shape, size, finish, and design can tailor to meet your specific requirements too.

Advanced Coatings: Optional anti-glare, anti-reflective, anti-fingerprint, moreover anti-microbial coatings available for enhanced functionality.

Service Excellence:

Timely Delivery: Guaranteed on-time delivery to meet your project deadlines.

Expert Support: One-on-one consultation and professional guidance to assist with your unique needs.

Elevate your projects with our high-performance AR tempered glass, designed to combine strength, elegance, and customization for unparalleled results as well.

AR Treatment on AR Cover Lens

After the cover glass undergoes an optical coating process, its reflectivity is significantly reduce while its transmittance is enhanced.

This treatment can achieve a maximum transmittance of over 99% and reduce reflectivity to less than 1%.

The increased transmittance ensures that the display content is present with exceptional clarity, offering viewers a more comfortable and vivid visual experience.

Color Option For AR glass

Purple: Purple reflection is commonly seen in AR glass;

Green: Need custom-made;

Blue: Need custom-made

Applications of Green-Reflective AR Cover Lens

The use of green-reflective AR (Anti-Reflective) glass is determine by its unique optical properties.

Such as the specific wavelengths it reflects and its overall light transmission capabilities. Below are some potential applications where this specialize glass could utilize:

Displays:

The subtle green tint of the glass may offer an aesthetically appealing effect or align with specific color profile requirements.

Its anti-reflective properties enhance image clarity, reduce glare, and minimize eye strain, making it ideal for high-quality display screens.

Optical Instruments:

The glass’s ability to selectively transmit or reduce certain wavelengths makes it suitable for use in filters, lenses, or other optical devices where precise light control is essential.

Automotive Components:

Green-tinted AR cover lens could be employed in automotive applications for both functional and aesthetic purposes as well.

It may improve visibility under specific lighting conditions while adding a distinctive visual element to vehicle designs.

Key Considerations:

The green reflection is typically subtle, with the primary focus remaining on reducing glare and maximizing light transmission too.

The specific optical properties, such as reflectivity, transmission rates, and color shift, will determine the most appropriate application for the glass.

In conclusion, the green-reflective AR glass combines functionality with aesthetic appeal, in addition making it a versatile solution for industries requiring advanced optical performance.
