Technical Specifications & Material Options

Every outdoor application presents distinct environmental challenges. We process various outdoor display cover glass substrates and treatments to match your exact ingress protection (IP) and optical requirements:

Substrate Materials: High-transmission Soda-Lime glass, Corning® Gorilla® Glass, Dragontrail™ Glass, and Quartz.
Thickness Range: 0.5mm to 19mm with precision CNC tight tolerances (±0.05mm).
Chemical Strengthening: Ion-exchange process providing high depth of layer (DoL) and compressive stress (CS) for superior IK10 impact resistance.
Surface Finishes: AG Anti-Glare Cover Glass etching to eliminate direct sunlight reflection; Anti-Reflective (AR) coating to boost light transmission above 98%; Anti-Fingerprint (AF) oleophobic coating.

Engineered to Combat Outdoor Elements

Standard commercial outdoor display cover glass fails rapidly under continuous sunlight and moisture. Our outdoor-grade solutions integrate specialized multi-layer treatments:

UV Blocking & Solar Control: Prevents yellowing of underlying LCD/LED polarizer films and reduces internal thermal buildup inside sealed enclosures.
All-Weather Durability: Tested against thermal shock, salt-fog corrosion, and continuous rain or high humidity.
Custom Silk Screen Printing: Ceramic ink printed and high-temperature fired borders (black, white, or custom RAL colors) to seamlessly hide bezels, sensors, and camera holes while maintaining a sleek, modern industrial aesthetic.

Typical Applications

Our custom outdoor display cover glass solutions are widely integrated into:

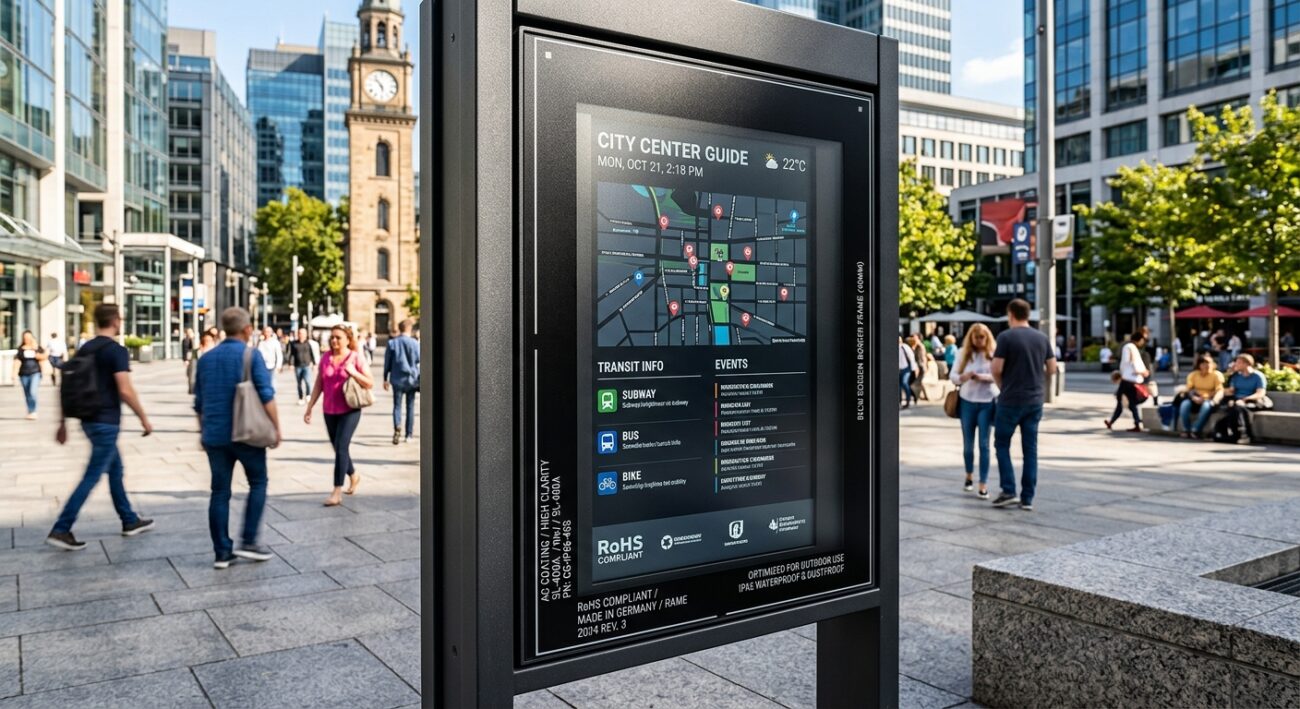

Outdoor digital signage and advertising kiosks
EV (Electric Vehicle) charging station touch interfaces
Marine navigation and aviation control displays
Self-service ticketing terminals and smart city infrastructure

Why Partner With Us for Custom Outdoor Display Cover Glass?

Unlike standard off-the-shelf distributors, we specialize in tailor-made OEM/ODM manufacturing. From prototype to bulk industrial scale, our facility utilizes automated cutting, CNC edge profiling, chemical tempering, and cleanroom silk screening under strict ISO-certified quality control. Contact our engineering team today with your drawings (DXF/DWG/STEP) for a rapid DFM (Design for Manufacturing) review and quotation.

Custom Outdoor Display Cover Glass for Extreme Environments

Engineered for mission-critical digital signage, EV charging stations, and industrial kiosks, our outdoor display cover glass delivers exceptional optical clarity while withstanding harsh weather, vandalism, and intense UV exposure. Built to exact custom specifications through advanced CNC machining and chemical strengthening.

Engineered to Combat Outdoor Elements

Standard commercial outdoor display cover glass solutions fails rapidly under continuous sunlight and moisture. Our outdoor-grade solutions integrate specialized multi-layer treatments:

UV Blocking & Solar Control: Prevents yellowing of underlying LCD/LED polarizer films and reduces internal thermal buildup inside sealed enclosures.
All-Weather Durability: Tested against thermal shock, salt-fog corrosion, and continuous rain or high humidity.
Custom Silk Screen Printing: Ceramic ink printed and high-temperature fired borders (black, white, or custom RAL colors) to seamlessly hide bezels, sensors, and camera holes while maintaining a sleek, modern industrial aesthetic.

Typical Applications

Our custom outdoor industrial display glass solutions are widely integrated into:

Outdoor digital signage and advertising kiosks
EV (Electric Vehicle) charging station touch interfaces
Marine navigation and aviation control displays
Self-service ticketing terminals and smart city infrastructure

Frequently Asked Questions (FAQ)

What is the difference between Anti-Glare (AG) and Anti-Reflective (AR) glass for outdoor displays?

Anti-Glare (AG) glass uses chemical etching to diffuse direct ambient light and harsh reflections, making displays readable under direct sunlight without altering image colors. Anti-Reflective (AR) glass applies optical thin-film coatings to lower surface reflection below 1% and increase light transmittance up to 98%+, enhancing display brightness and contrast ratio.

How do you achieve IK10 impact resistance on outdoor display cover glass?

IK10 rating is achieved through chemical toughening (ion-exchange process) or thermal tempering, combined with engineered glass thickness (typically 3mm to 6mm depending on screen diagonal). We optimize the Compressive Stress (CS) and Depth of Layer (DoL) to ensure maximum crack and vandalism resistance.

Can custom cover glass handle extreme thermal fluctuations?

Yes. Our outdoor cover glass is chemically engineered and tested to endure operating temperatures ranging from -40°C to +85°C (-40°F to 185°F). It retains structural integrity without optical distortion or delamination under thermal shock.

Can ceramic silk screen printing withstand outdoor UV exposure?

Yes. We utilize high-temperature ceramic ink that is thermal-fused into the glass surface at over 600°C during the processing stage. The resulting border or logo is scratch-resistant, fully UV-stable, and will not peel, fade, or bubble over years of outdoor operation.

Request a Quote (RFQ) & DFM Review

Looking for a customized outdoor display cover glass engineered for your specific enclosure or display panel? Our technical team provides complete Design for Manufacturing (DFM) support within 24 hours.

How to Get an Fast & Accurate Quotation:

To help our engineering team calculate exact production costs and lead times, please provide the following details in your inquiry:

Dimensional Drawings: CAD files (STEP, DXF, DWG) or PDF technical drawings including dimensions, cutouts, and tolerances.
Glass Thickness & Substrate: Desired glass thickness (e.g., 2mm, 3mm, 4mm, 6mm) and glass type (Soda-Lime, High-Transmittance, Corning® Gorilla® Glass).
Surface Treatments Required: AG (Anti-Glare), AR (Anti-Reflective), AF (Anti-Fingerprint), or UV-blocking coatings.
Silk Screen Details: Border color (black/white/RAL code), ceramic ink, or cutouts for ambient light sensors and cameras.
Project Quantity: Estimated Initial Batch Quantity and Annual Usage (MOQ applies for custom runs).

Ready to Start Your Project?

Send your drawings and specs directly to our engineering team at kleinma@wmcoverglass.com or click below to submit your request online.

Request a Custom Quote & DFM Check
