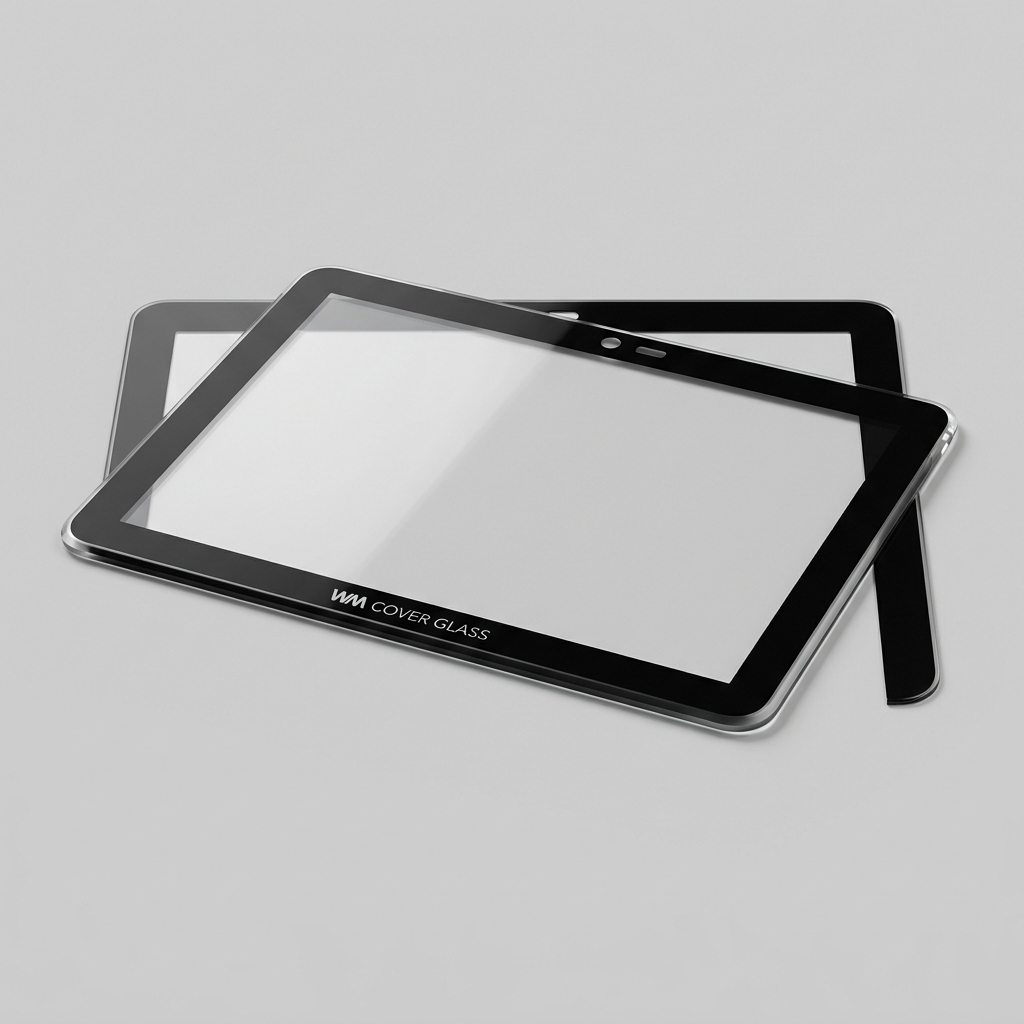

Custom Glass Panel for Touch Screen & Interactive Displays
Integrate sleek aesthetics and heavy-duty structural protection into your display assemblies with custom glass panels designed specifically for capacitive and resistive touch screens. Engineered for OEM display integrators, industrial computer builders, and medical hardware manufacturers, our glass panels serve as the critical outer interface layer that defends underlying touch sensors from mechanical wear, fluid ingress, impact, and chemical exposure.
Whether you are retrofitting an existing field enclosure or prototyping a next-generation human-machine interface (HMI), we fabricate custom touch screen glass covers tailored directly to your mechanical CAD files. Every panel is manufactured using high-grade electronic float glass or ultra-clear low-iron glass, ensuring superior optical clarity, precise touch sensitivity pass-through, and thermal stability across demanding operational environments.

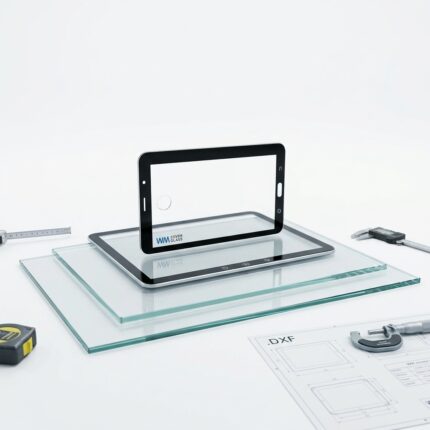

Custom Glass Panel for Touch Screen Mechanical Processing & Fabrication Capabilities
Touch screen integration leaves no room for dimensional error. A discrepancy of a fraction of a millimeter can ruin sealant bonds or misalign capacitive touch sensors. We utilize advanced multi-axis CNC glass machining lines to ensure your custom glass panel for touch screen match your exact mechanical tolerances:
-
High-Precision CNC Profiling: Custom rectangular, square, circular, or irregular geometry glass cutting with tight tolerances (0.05mm to 0.1mm depending on panel dimensions).
-
Edge Finishing Options: Flat polished edges for recessed flush mounting, 2.5D C-shape rounded edges for smooth touch-to-edge user interaction, and chamfered edges to prevent stress cracking along the perimeter.
-
Functional Cutouts & Slot Milling: Precision diamond-core drilling for physical home buttons, mechanical switches, status LEDs, microphones, light sensors, and camera viewports without micro-fracturing surrounding glass.
-
Chemical Strengthening & Thermal Tempering: Customized glass strengthening based on thickness requirements. Thin substrates (0.7mm – 2.0mm) undergo precision chemical ion-exchange tempering (KNO3 bath) to boost surface compressive stress above 650MPa without inducing optical distortion, ensuring high scratch resistance and impact durability.
Custom Glass Panel for Touch Screen Border Printing & Aesthetic Options
The perimeter printing on a touch screen cover panel defines the finished look of your device while concealing internal mounting bezels, flex cables, and adhesive tape lines:
-
High-Opacity Frame Silk-Screening: Multi-pass ceramic or organic ink printing in dead-black, crisp white, silver gray, or custom Pantone / RAL shades with high opacity (OD > 4.0) to block backlighting bleed.
-
Dead-Front Logo & Status Window Effects: Special semi-transparent inks that keep warning icons, indicators, or logos completely invisible until illuminated from behind by internal LEDs.
-
IR & Camera Pass-Through Windows: Selective ink-free zones or high-IR-transmittance inks tailored for infrared proximity sensors, ambient light sensors, and facial recognition lenses.
Custom Glass Panel for Touch Screen Technical Specifications Chart
| Feature Parameter | Specification & Manufacturing Range |
| Glass Substrates | Soda Lime Glass, Aluminosilicate Glass, Gorilla Glass |
| Thickness Availability | 0.7mm, 1.1mm, 1.5mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm |
| Dimensional Limits | Min: 20mm × 20mm |
| Dimensional Tolerance | Standard: 0.1mm | High-Precision CNC: 0.05mm |
| Surface Hardness | 7H to 8H Mohs (Post-strengthening) |
| Transmittance | 91% (Standard Float) | 93\ (Low-Iron Ultra-Clear) |
| Edge Finish Types | Flat Ground Edge, Pencil Edge, 2.5D C-Edge, Beveled Edge |
| Silk-Screen Printing | Organic Screen Ink, Inorganic High-Temp Ceramic Glass Ink |
| Compliance | RoHS, REACH Compliant, Shatterproof Drop Test Qualified |
Custom Glass Panel for Touch Screen Industry Applications
Our custom touch screen glass panels are deployed across diverse commercial and industrial sectors:
-
Industrial HMIs & Factory Automation: Heavy-duty front panels resistant to oil mist, harsh washdowns, dust, and physical vibration.
-
Smart Home Control Hubs & Thermostats: Ultra-clear 1.1mm-2.0mm glass panels with flush C-edges and sleek black borders for premium residential interfaces.
-
Medical Diagnostic Equipment: Smooth glass interfaces engineered to withstand continuous wipedowns with medical-grade alcohol and isopropyl disinfectants.
-
Outdoor Kiosks & Vending Terminals: Vandal-resistant 4.0mm-6.0mm strengthened glass covers designed to meet IK08/IK09 impact standards.
-
POS Payment Terminals & Access Control: Custom drilled glass covers housing optical card readers, fingerprint sensors, and pinpad displays.
Custom Glass Panel for Touch Screen Frequently Asked Questions (FAQ)
Q1: How do I determine whether my custom glass panel for touch screen needs chemical strengthening or thermal tempering?
A: Glass thickness dictates the strengthening process. Thin glass panels (0.5mm – 2.0mm) used in touch screens cannot be thermally tempered due to heat-induced optical warp. We utilize chemical strengthening (potassium ion exchange) for thin glass, which dramatically increases bending strength and surface hardness without compromising optical flatness. For panels 3.0mm and thicker, thermal tempering can be applied depending on your mechanical impact targets.
Q2: Can you
custom glass panel for touch screen ready for optical bonding or tape bonding?
A: Yes. We ensure that the rear surface of the glass panel—specifically the printed frame area—is completely clean, flat, and compatible with double-sided acrylic foam tapes (such as 3M 467MP/468MP) or Liquid Optical Clear Adhesives (LOCA) and Solid OCA films used in optical bonding assemblies.
Q3: What engineering drawing formats do you accept for custom quotes?
A: We accept vector CAD files including .DXF, .DWG, and .STEP for CNC programming, as well as .PDF or .AI files for silk-screen graphics and dimensioned inspection checks.
Q4: What is your typical lead time for custom touch panel prototypes?
A: Standard engineering prototypes typically ship within 7 to 10 working days following final CAD drawing approval. Mass production lead times generally range from 2 to 3 weeks based on batch size and processing complexity.
7. Call to Action (CTA)
Ready to Protect & Elevate Your Custom Glass Panel For Touch Screen Assembly?
Whether you need 50 pieces for engineering testing or volume production runs for a full hardware launch, WM Cover Glass delivers precision-engineered touch screen glass panels built to your exact specifications.
