3M Adhesive Cover Glass | Custom OEM Manufacturer

Adhesive Mounting Structure

Unlike standard cover glass, 3M adhesive cover glass can be supplied with a pre-applied 3M™ adhesive layer on the rear surface before shipment, allowing the glass and mounting interface to be prepared as one OEM component.

The adhesive can be configured to match the customer’s mounting area:

• Perimeter adhesive frame
• Custom adhesive strips
• Die-cut adhesive patterns
• Segmented adhesive areas
• Adhesive-free display viewing area

The position and dimensions of the adhesive are controlled according to the approved drawing so that the glass can align with the intended bezel or housing during assembly.

A release liner can be supplied over the adhesive to protect the bonding surface before installation.

We manufacture custom 3M adhesive cover glass according to the requirements of the finished assembly. The glass and adhesive configuration can be developed from your drawing, including the glass outline, mounting area, adhesive pattern, printing, CNC features and surface treatment.

Our processing options include:

✔ Glass Processing: Cutting, Grinding, Drilling, CNC Machining
✔ Strengthening: Chemical Strengthening or Thermal Tempering
✔ Printing: Silk-Screen Borders, Logos and Functional Graphics
✔ Surface Treatment: AG (Anti-Glare), AR (Anti-Reflective) and AF (Anti-Fingerprint)
✔ Bonding Preparation: 3M™ Adhesive, Die-Cut Adhesive Patterns and Custom Adhesive Placement

Custom Glass and Adhesive Configuration

The glass and adhesive are configured around the mechanical structure of the finished assembly rather than using a fixed standard layout.

Based on the customer’s drawing, we can coordinate the glass outline with the required adhesive area, mounting references, cutouts and printed regions. This allows the bonding interface to follow the actual structure of the bezel, frame or housing.

Custom configurations can include:

• Glass dimensions and tolerances
• Adhesive bonding area
• Adhesive width and geometry
• Mounting cutouts and openings
• Printed border and adhesive relationship
• Adhesive-free viewing area
• Positioning according to assembly references

The glass thickness, material, shape and adhesive pattern can be specified according to the project requirements.

3M™ Adhesive Options

The adhesive configuration is selected according to the customer’s assembly requirements. If your project already specifies a 3M™ adhesive, we can prepare the 3M cover glass using the specified adhesive material and follow the required bonding pattern.

For projects without a fixed adhesive specification, the bonding requirements can be reviewed during the engineering stage. Important factors include the mating substrate, bonding area, surface condition, operating temperature and assembly method.

Typical bonding configurations include:

• Glass-to-plastic mounting
• Glass-to-metal mounting
• Bezel attachment
• Housing attachment
• Display assembly mounting
• Perimeter bonding
• Custom die-cut adhesive patterns

If your project already specifies a 3M™ adhesive, please provide the exact 3M™ product number in your RFQ so the adhesive configuration can be reviewed accurately.

Customization Options

The finished 3M adhesive cover glass can be configured according to the customer’s mechanical drawing and assembly requirements.

Glass Configuration

• Custom length and width
• Custom thickness
• Standard or irregular shapes
• Holes, slots, notches and cutouts
• Ground, polished or chamfered edges

Strengthening

• Chemical strengthening
• Thermal tempering

Printing

• Black borders
• White or custom-color graphics
• Logos and symbols
• Functional markings
• Decorative patterns

Surface Treatment

• Anti-glare (AG)
• Anti-reflective (AR)
• Anti-fingerprint (AF)

Adhesive Configuration

• 3M™ adhesive
• Customer-specified adhesive
• Perimeter adhesive
• Custom die-cut patterns
• Multiple bonding areas
• Custom adhesive placement
• Protective release liner

The adhesive layout can be coordinated with the glass dimensions, printing area and mounting structure so that the finished component follows the approved assembly drawing.

Glass Material Options

The glass substrate can be selected according to the requirements of the finished assembly. The adhesive configuration is then developed around the selected glass and mounting structure.

Soda-Lime Glass
A practical option for applications where standard glass performance and cost efficiency are important.

Aluminosilicate Glass
Suitable for projects requiring a thinner or higher-strength glass substrate.

Gorilla Glass
Available for projects where a specified Gorilla Glass substrate is required.

Customer-Specified Glass
If your project already uses an approved glass material, we can manufacture the 3M cover glass according to the specified substrate and technical requirements.

The final material selection should be based on the required thickness, mechanical performance, optical requirements, bonding structure and project specifications.

Custom 3M Adhesive Cover Glass Process

The production process combines glass fabrication with adhesive preparation so that the finished component can be supplied according to the customer’s assembly drawing.

1. Drawing and Assembly Review
We review the glass outline, dimensions, tolerances, cutouts, printing areas, mounting references and adhesive pattern specified in the drawing.

2. Glass Fabrication
The glass is cut and processed to the required dimensions and geometry. CNC machining can be used for holes, slots, notches and other drawing-based features.

3. Strengthening and Edge Processing
Edge finishing, chemical strengthening or thermal tempering is completed according to the approved product requirements.

4. Printing and Surface Treatment
Silk-screen graphics, borders, logos or symbols are applied when required. AG, AR or AF treatment can also be incorporated into the glass configuration.

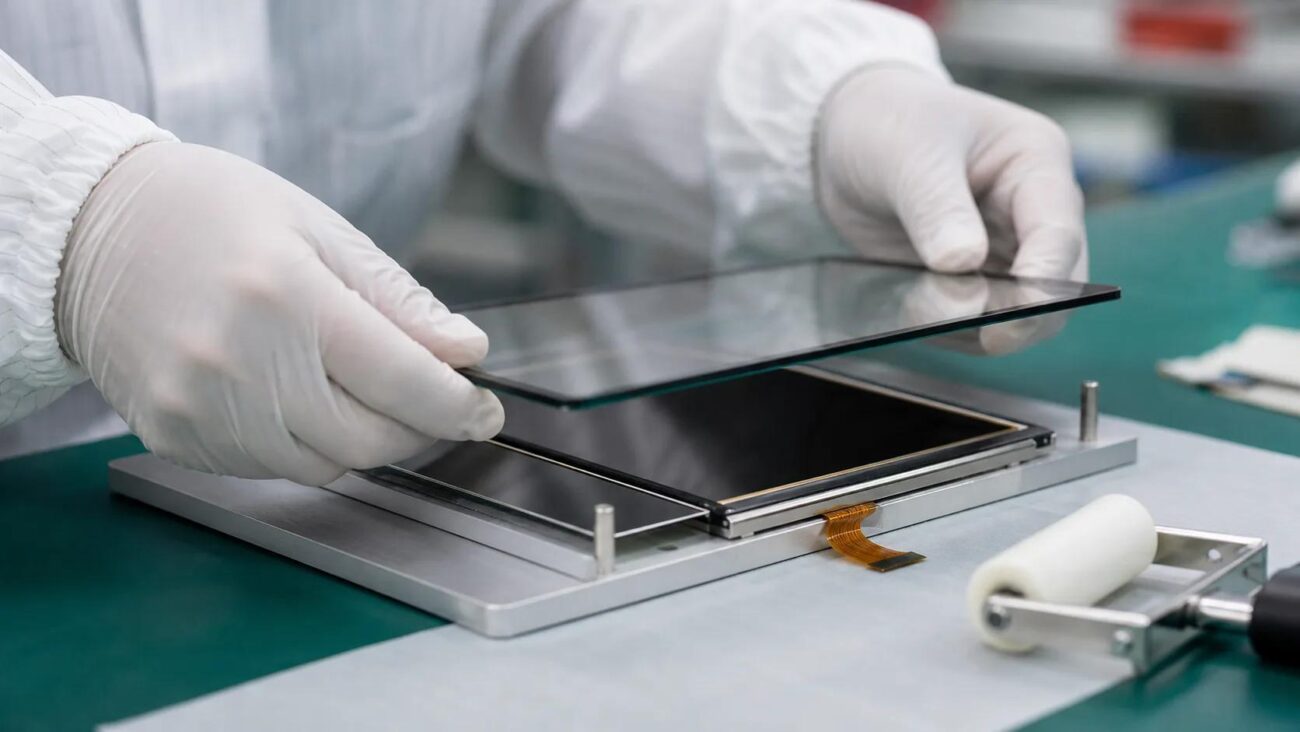

5. Adhesive Die-Cutting and Application
The specified 3M™ adhesive is converted or die-cut to the required shape and applied to the designated area on the rear surface of the glass.

6. Adhesive Alignment and Final Inspection
The adhesive position, glass dimensions, printing, surface condition and other specified characteristics are checked against the approved requirements.

7. Protective Packaging
The finished glass component is packaged to protect the glass, printed surface and adhesive area during handling and transportation.

Adhesive Placement

The adhesive layout is determined by the mounting structure of the finished product. It can be positioned only where bonding is required, rather than covering the entire rear surface of the glass.

Typical configurations include:

• Continuous perimeter bonding
• Four-side adhesive frames
• Multiple independent bonding zones
• Custom adhesive strips
• Die-cut adhesive shapes
• Full-area adhesive
• Adhesive-free viewing areas

The adhesive width, shape, position and coverage can be prepared according to the approved assembly drawing. Mounting openings and non-bonding areas can also be considered when defining the adhesive pattern.

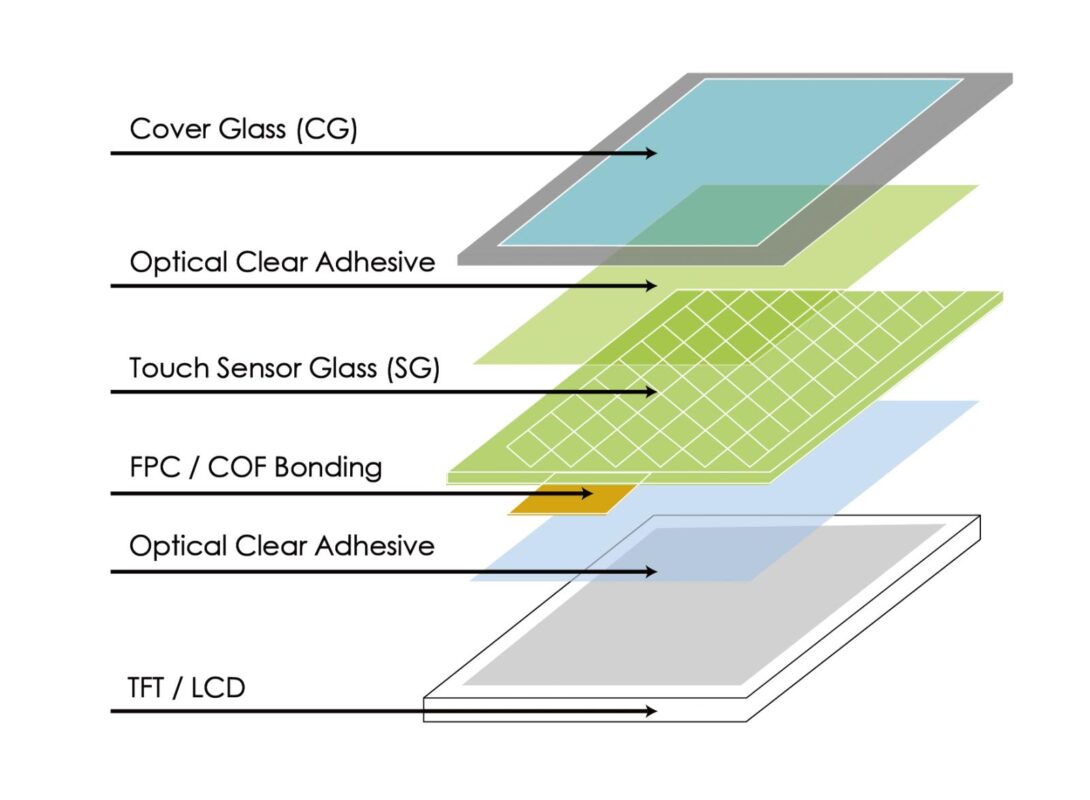

For display assemblies, the adhesive layout can be coordinated with the glass outline, printed border, viewing area and mating surface of the bezel or housing.

If you have an existing mechanical drawing, please provide it with your RFQ so the adhesive placement can be reviewed together with the glass configuration.

3M Adhesive Cover Glass Specifications

Custom Printing and Appearance

Printing can be incorporated into the 3M adhesive cover glass according to the approved artwork and assembly drawing.

Typical printing options include:

• Black or white printed borders
• Custom-color graphics
• Logos and symbols
• Functional markings
• Decorative patterns
• Printed areas around the display viewing window

For adhesive-backed 3M cover glass, the printed area can be coordinated with the adhesive layout and mounting structure. This helps define the visible display area while keeping the required bonding areas available for assembly.

Printing specifications can include artwork dimensions, color requirements, registration tolerances and the relationship between the printed border and adhesive pattern.

For OEM projects, customers can provide artwork or technical drawings for review before sample production.

Why Use Pre-Applied Adhesive Cover Glass?

Pre-applied adhesive allows the 3M adhesive cover glass and mounting interface to be prepared as one component before delivery. This can simplify the assembly process when the adhesive pattern and bonding position are already defined by the product design.

Key benefits for OEM assembly include:

• Simplified Assembly — The adhesive is prepared on the glass before shipment, reducing a separate adhesive application step.
• Consistent Adhesive Position — The adhesive pattern can be controlled according to the approved drawing.
• Custom Bonding Areas — Perimeter, strips, die-cut patterns or multiple bonding zones can be prepared according to the mounting structure.
• Better Assembly Planning — The glass outline, printed border, viewing area and adhesive position can be coordinated during engineering.
• Ready for Integration — The finished component can be supplied with a protective release liner for handling and assembly.

For OEM projects, the adhesive configuration can be reviewed together with the glass drawing, mounting structure and assembly requirements before sample production.

Quality Inspection for 3M Adhesive Cover Glass

Inspection is performed according to the approved drawing, product specifications and project requirements. For adhesive-backed 3M adhesive cover glass, inspection covers both the glass component and the adhesive configuration.

Depending on the product requirements, inspection may include:

• Glass Dimensions — Length, width, thickness and dimensional tolerances
• Edge Condition — Edge grinding, polishing, chamfering and visual condition
• Surface Appearance — Scratches, chips, contamination and other visible defects
• Printing — Printed area, position, appearance and registration
• Optical Performance — Light transmittance and other specified optical requirements
• Surface Treatment — AG, AR or AF treatment according to the approved specification
• Adhesive Position — Adhesive location, width and alignment against the approved drawing
• Adhesive Pattern — Die-cut shape, bonding areas and non-bonding areas
• Adhesive Surface Condition — Adhesive cleanliness and protection before assembly
• Release Liner — Coverage, condition and proper protection of the adhesive layer
• Strengthening — Chemical strengthening or thermal tempering requirements where specified
• Final Packaging — Protection of the glass, printed surface and adhesive during handling and shipment

For projects with customer-specific inspection standards, inspection criteria can be defined during engineering, sample approval and production stages.

Applications of 3M Adhesive Cover Glass

3M adhesive cover glass is used where the glass needs to be positioned and bonded directly to a bezel, frame, housing or other mounting structure.

Typical applications include:

Industrial HMI Panels

For control interfaces and operator panels where the touch screen cover glass is mounted directly to the equipment housing or bezel.

POS Terminals

Custom glass with printed borders and pre-applied adhesive for point-of-sale display assemblies.

Kiosks

Suitable for self-service kiosks and interactive terminals requiring a custom glass outline and defined mounting area.

Smart Appliance Control Panels

Used for display and touch-control interfaces where the 3M adhesive cover glass lens is integrated with the appliance housing.

Electronic Display Assemblies

For OEM display modules requiring custom glass dimensions, printing and a specified adhesive mounting pattern.

The glass outline, adhesive area, printing and mounting features can be configured according to the customer’s assembly drawing.

Frequently Asked Questions

What is 3M adhesive cover glass?

3M adhesive cover glass is a custom glass component supplied with a pre-applied 3M™ adhesive layer for mounting to a bezel, frame, housing or other assembly structure. The glass and adhesive pattern can be prepared according to the customer’s requirements.

Can you apply 3M™ adhesive according to our drawing?

Yes. We can prepare the adhesive position, width, shape and bonding areas according to an approved assembly drawing. Please provide the relevant drawing and adhesive requirements for review.

Can the adhesive be applied only around the perimeter?

Yes. Perimeter bonding is one of the available configurations. Custom adhesive strips, die-cut patterns and multiple bonding zones can also be prepared according to the mounting structure.

Can you supply printed 3M adhesive cover glass?

Yes. Silk-screen borders, logos, symbols and other graphics can be incorporated into the 3M adhesive cover glass. The printed area can be coordinated with the adhesive pattern and display viewing area.

Can the glass be chemically strengthened?

Yes. Chemical strengthening or thermal tempering can be specified according to the glass material, thickness and application requirements.

Can AG, AR or AF treatment be added?

Yes. Anti-glare (AG), anti-reflective (AR) or anti-fingerprint (AF) surface treatments can be specified when compatible with the project requirements.

Can you use a specific 3M™ adhesive product?

Yes. If your project already specifies a particular 3M™ adhesive, please provide the exact product number in your RFQ so the adhesive configuration can be reviewed accurately.

Can the 3M adhesive cover glass have holes or cutouts?

Yes. CNC processing can be used for holes, slots, notches, cutouts and other features defined in the approved drawing.

Can you supply the glass with a release liner?

Yes. A protective release liner can be supplied over the adhesive layer to protect it during handling, storage and assembly.

What information is required for a quotation?

For an accurate quotation, please provide the glass drawing, dimensions, thickness, material, printing requirements, surface treatment, adhesive product number or requirements, adhesive pattern and estimated order quantity.

If available, please also provide the application or assembly drawing so the glass and adhesive configuration can be reviewed together.

Request a Quote for Custom 3M Adhesive Cover Glass

Looking for custom 3M adhesive cover glass for your next project?

Send us your glass drawing or assembly requirements, and our team can review the glass dimensions, adhesive pattern, printing, surface treatment and mounting configuration.

Please include the following information when available:

• Glass drawing or CAD file
• Glass material and thickness
• Glass dimensions and tolerances
• Printing requirements
• AG, AR or AF requirements
• 3M™ adhesive product number or adhesive requirements
• Adhesive pattern and placement
• Estimated order quantity

We can support prototype, small-batch and production requirements based on your project specifications.

Submit your requirements to request a custom quotation.
