Cover Glass Introduction

Cover Glass Features

Cover Glass Custom different size and shape

Optical clarity(usually visible light transmittance up to 91% above).

Scratch resistant(soda lime glass hardness 6H, aluminosilicate up to 8-9H).

Impact resistant(IK test depends on different thickness and sizes)

Perfect flatness for optical bonding

Integrated with touch sensors

High environmental and temperature stability

In Weiman, we offer cover glass lens customization services including:

Cutting: Rough shapes by diamond unit or laser cutting from big sheet of glass substrate into rough shapes of the final products, but edge is still sharp and big tolerances.

CNC processings:Edge grinding and chamfering, slotting, hole drilling.

Tempering: Chemically strengthening for thickness under 3.0mm and thermally tempering for 3.0mm thickness above.

Silk screen print: For thin thickness cover glass option, we use resin ink for print and for thermal tempering we use 3.0mm thickness above.

Coatings(AR, AF, AG):

Coatings In Cover Glass

AR means anti reflection by electroplating base on different spectral bands, single side increase 3-4% light transittance and double sides up to 99% at most.

AF with 2 kinds of methods including electroplating(costly but more durable) and spray(cheaper but less durable), it can also protect the AR coating from easy peel off.

Bonding: Mainly focus on 3M tapes including adhesive transfer tape, VHB tape and OCA tapes.

Lamination: Foil to protect from dirt and explosion proof sheet for better anti scatter.

Why Chemical toughened Cover Glass is the Preferred Choice?

In the context of optical bonding, minimizing warpage between the cover glass and the LCD panel is critical.

Any deviation or gap beyond the specified tolerance can compromise the bonding integrity and adversely affect the performance of the entire sensor system.

Chemically strengthened glass excels in this regard, as it can maintain warpage control within an exceptionally tight tolerance of <0.2mm (for a 3mm thickness example).

In contrast, thermally tempered glass typically achieves a warpage tolerance of only <0.5mm (for the same thickness).

This superior flatness ensures a more precise and reliable bonding process, reducing the risk of defects.

Additionally, chemically strengthened glass exhibits a central compressive stress range of 450MPa to 650MPa, significantly enhancing its scratch resistance and mechanical durability.

This combination of low warpage and high stress performance makes chemically strengthened glass the top choice for cover glass applications.

Particularly in high-precision and demanding environments.

Chemical toughened after break

7f35cc24b45d4754b40dfd43d6f8a200 th

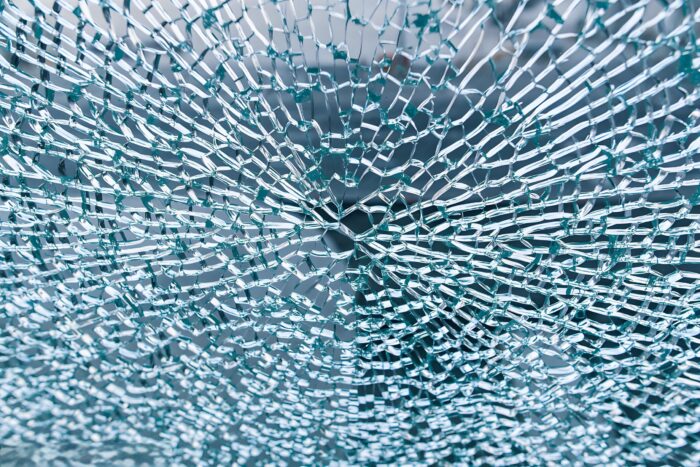

Example for thermal tempering when break

cover glass thermal tempered

Definition For Cover Glass Lens

Cover glass lens, also referred to as reinforced optical glass, glass windows, or reinforced smartphone lenses.

It’s a critical component typically assembled as the outermost layer of a touch screen display.

The primary material used in the production of cover glass is ultra-thin flat glass, which undergoes a series of precision manufacturing processes, including:

Cutting, CNC engraving, thinning, strengthening, coating, and printing.

Through these advanced processes, the glass is engineered to exhibit exceptional properties such as:

Impact resistance, scratch resistance, oil repellency, anti-fingerprint capabilities, and enhanced optical transmittance.

As a result, the glass serves as a robust protective barrier for the touch screen, functioning as a high-strength “armor” that safeguards the display’s outermost layer while maintaining optimal clarity and durability.
